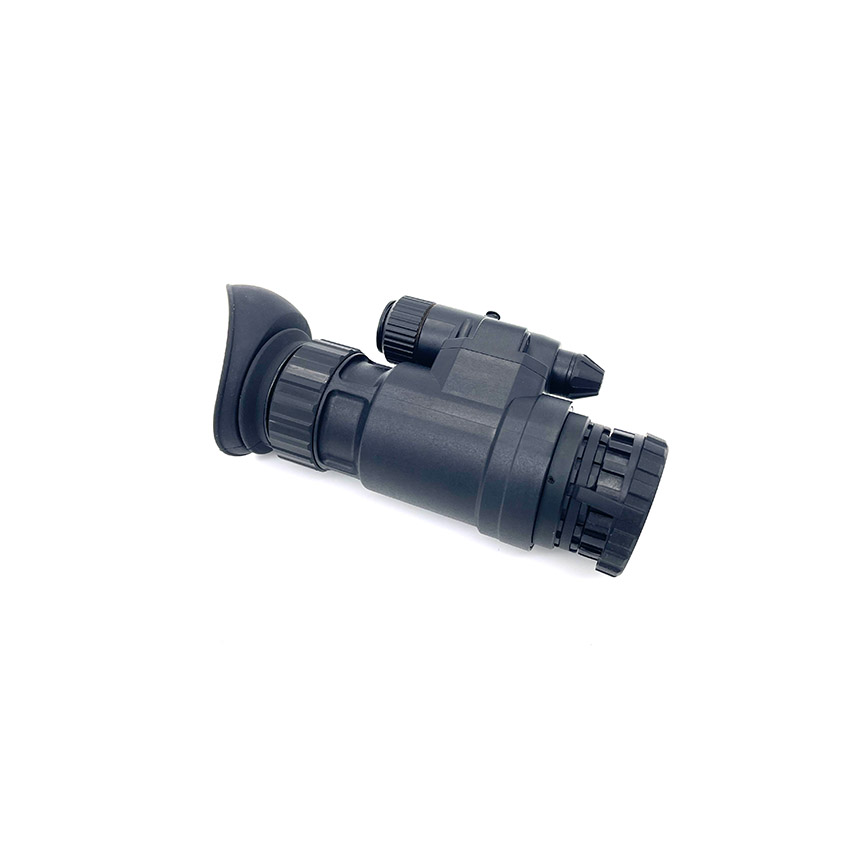

Visionking Gen2+ Helmet Mount Waterproof Military mini Night Vision Monocular Night-Vision 1x for Hunting
Product Description:
The PVS-14 night vision is a new product developed based on the latest optoelectronics technology with a field of view of 50 degrees. The imaging is clear, the operation is simple. The magnification can be changed by replacing the objective lens. The night vision device has a built-in infrared Illuminator and an auto- gain system. The product has strong practicability and can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in the night without lighting. It is equipment for public security departments, armed police forces, special police forces, and guarding patrols.
Technical specifications:
Detail Images:
The PVS-14 night vision is a new product developed based on the latest optoelectronics technology with a field of view of 50 degrees. The imaging is clear, the operation is simple. The magnification can be changed by replacing the objective lens. The night vision device has a built-in infrared Illuminator and an auto- gain system. The product has strong practicability and can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in the night without lighting. It is equipment for public security departments, armed police forces, special police forces, and guarding patrols.
Technical specifications:
| MODLE | PVS-14 |
| Image intensifier | Gen 2+ |
| Magnification | 1X |
| Resolution ( lp/mm) | 51-57 |
| Photocathode | S25 |
| S/N (dB) | 15-21 |
|
Luminous sensitivity(uA/lm) |
450-500 |
| MTTF | 10,000 |
| FOV(degree) | 42+/-3 |
| Detection distance(M) | 180-220 |
| Graduation cursor | Internal(optional) |
| Diopter range | +5/-5 |
| Optical system | F1.2, 25mm |
| Coating | Multilayer broadband coating |
| Distance range(M) | 0.25--∞ |
| Auto anti strong light | High sensitivitybroadband detection |
| Rollover detection | Solid non-contact automatic detection |
| Dimensions(mm) | 110*65*45 |
| Materials | plastic |
| Weight(no battery) | 240g |
| Battery Voltage | 2.6-4.2V |
| Battery type | CR123(A)x1 |
| Battery life(H) | 80(IR OFF) 40(IR ON) |
| Temperature range(ºC) | -40/+50 |
| Humidity range | 5%-98% |
| Waterproof | IP65(IP67optional) |
Detail Images:
