PVS33 Helmet Green Phosphor Binocular Night Vision Gen2+&Gen 3 Night Vision Helmet Goggles

Product Detail

Product Description:

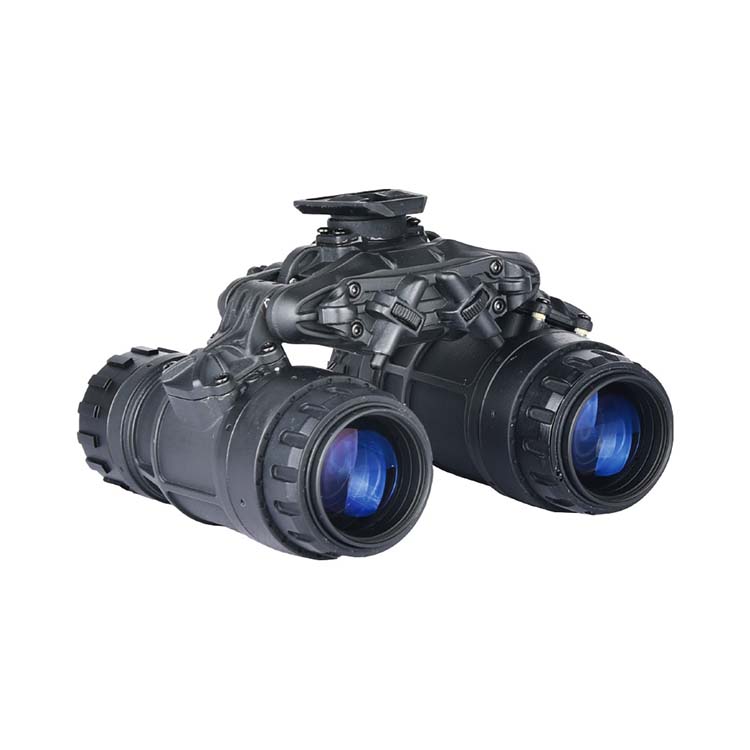

PVS-33 is a high-performance head mounted night vision binocular built by Visionking with reference to pvs-33n, an active head mounted night vision binocularin the United States. Low light PVS-33 has the characteristics of super large field of view, high definition, no distortion, light weight, high strength (the overall performance is much better than the original version of the U.S.  products), which is the ideal choice for night equipment.

Technical specifications:

MODEL	PVS-33N
Structural mode	Arbitrary turn it over
rollover detection	Automatically detect and power off when turning up
Battery type	Lithium battery (cr123x1) / AAAx1
Power supply	1.2-1.6/2.4-4.2V
Installation	Head mounted(standard American helmet interface)
control mode	ON/IR/AUTO
Over power consumption	<0.1W
Battery capacity	500-800maH
Battery life	30-50H
magnification	1X
FOV( °)	50 +/-2
Parallelism of optical axis	<0.5 °
IIT	Gen2+/3
Lens system	F1.18  25mm
MTF	120LP/mm
Optical distortion	<0.5% Max
Relative Illumination	>75%
coating	Multilayer broadband coating
Range of focus	250mm-∞
Focus mode	manual focus facility
Distance of pupil	30
Eyepiece aperture	9mm
Range of visibility	0  (+ / - 5 optional)
Eye spacing adjustment	Arbitrary continuous adjustable
Eye distance adjustment range	50-80mm
Eye distance locking method	Manual locking
Secondary Light Source	850nm 20mW
Applicable Temperature	-40--+55℃
Humidity range	5%-95%
Waterproofing Grade	IP65/IP67
