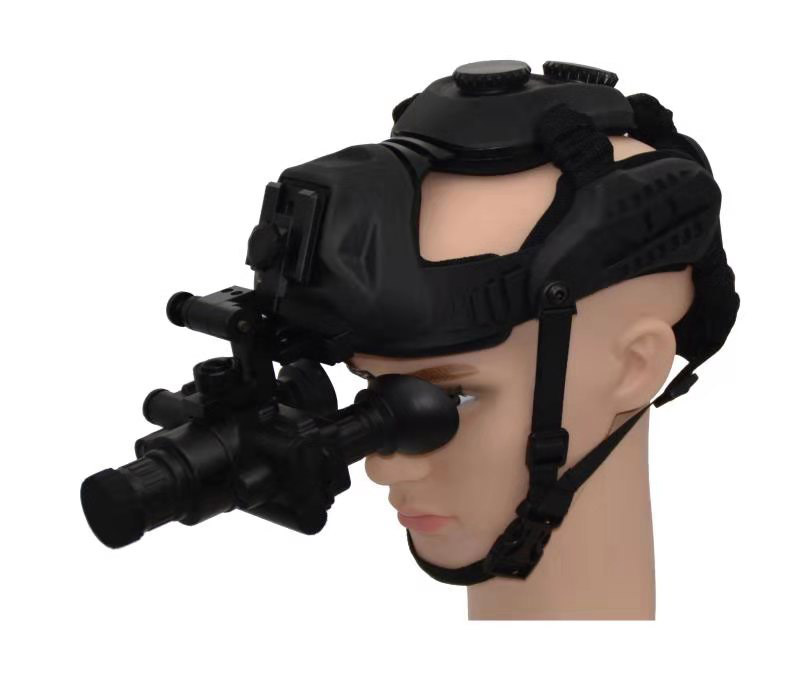

New PVS7 Helmet Green Phosphor Binocular Monotube Night Vision gen2+&gen 3 Night Vision Helmet Goggles

  • Price:Negotiable
Contact Supplier:

Product Detail

    Product features:
    PVS-7 multifunctional night vision instrument is a new product based on the latest Ophotoelectrics technology. It uses high-performance second-generation/third-generation image intensifier. It features excellent performance, small size, light weight, clear imaging, video output, adjustable eye distance, and can change magnification by changing objective lenses (or connecting multiplier lenses). This product can be adjusted arbitrarily with different eye distance requirements.

    Technical specifications:

    MODEL PVS-7
    IIT Gen2+/3
    Magnification 1X
    Resolution(lp/mm) 45-57/64-67
    Photocathode type S25
    S/N(db) 15-21
    Luminous sensitivity(μa-lm) 450-500
    MTTF(hrs) 10,000
    FOV(deg) 42+/-3
    Detection distance(m) 180-220
    Adjustable range of eye distance 65+/-5
    Diopter(deg) +5/-5
    Lens system F1.2, 25mm
    Coating Multilayer broadband coating
    Range of focus 0.25--∞
    Auto anti strong light High Sensitivity, Ultra Fast, Broadband Detection
    rollover detection Solid non-contact automatic detection
    Dimensions (mm) (without eye mask) 130x130x69
    material Aviation aluminum
    Weight (g) 393
    Power supply (volt) 2.6-4.2V
    Battery type (V) AA(2)
    Wavelength of infrared auxiliary light source (nm) 850
    Wavelength of red-explode lamp source (nm) 808
    Video capture power supply (optional) External power supply 5v 1W
    Video resolution (optional) Video 1Vp-p SVGA
    Battery life (hours) 80(W/O IR) 40(W/IR)
    Operating Temperature (C -40/+50
    Relative humidity 5%-98%
    Environment rating IP65(IP67 Optional)
